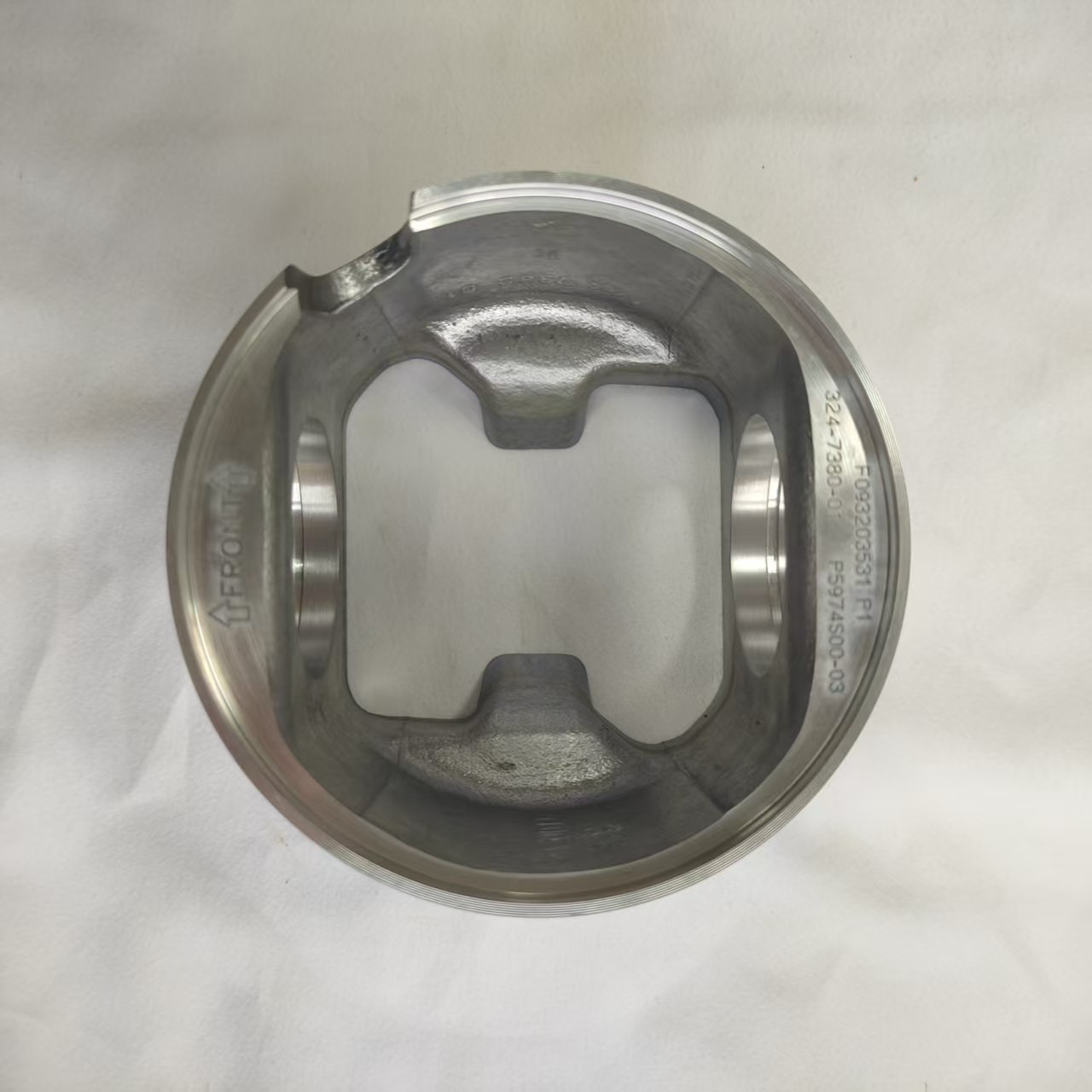

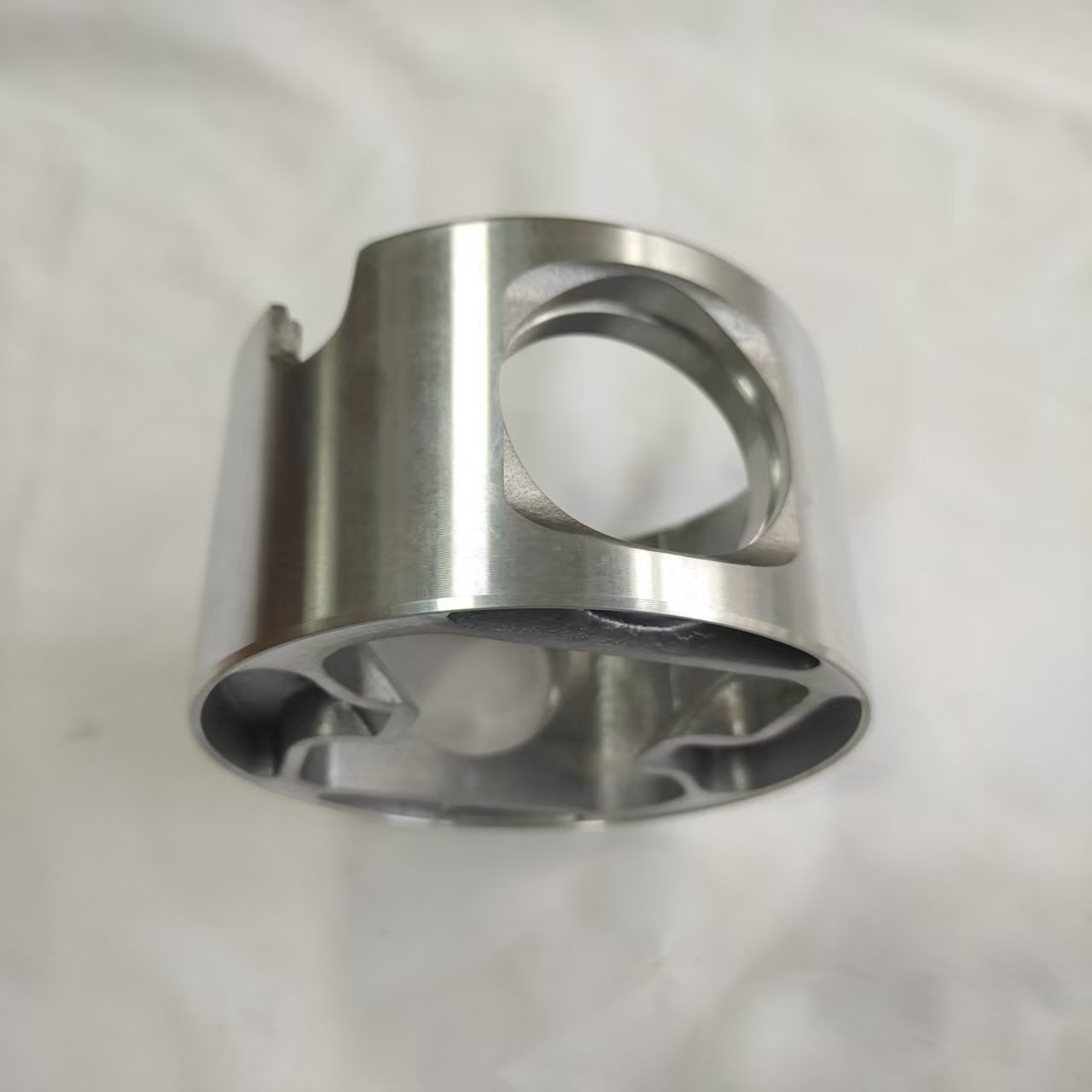

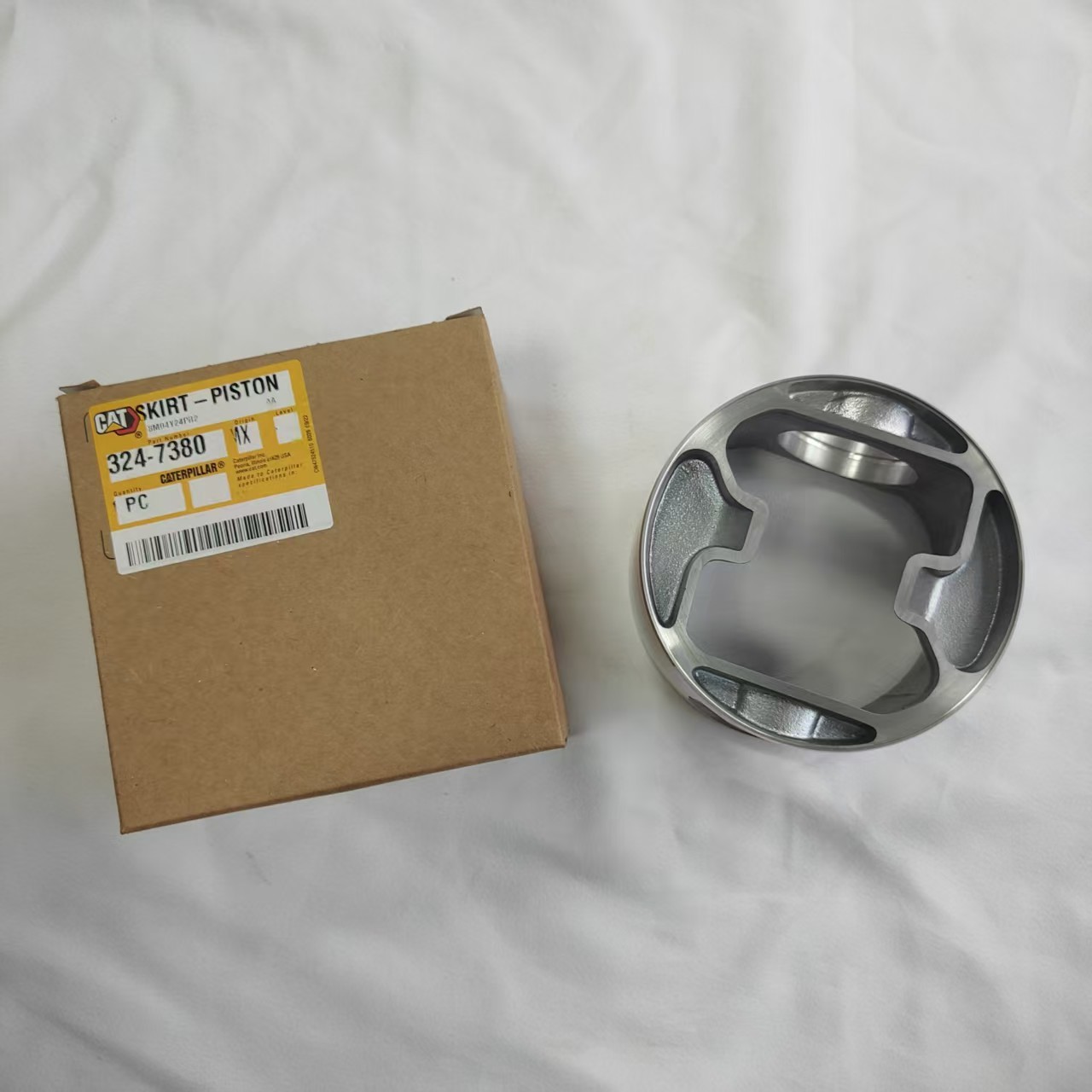

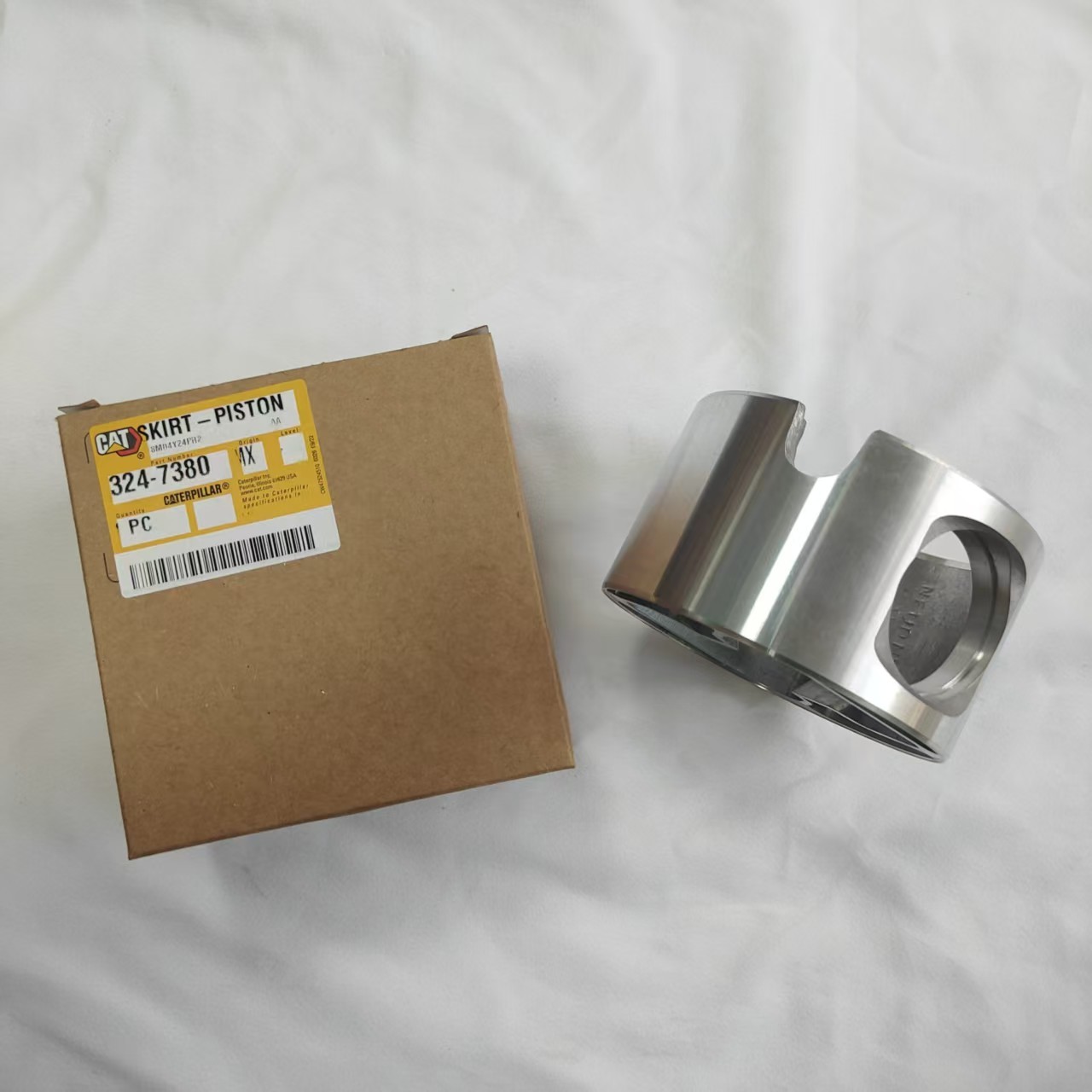

For 324-7380 3247380 Piston Skirt CAT C9 C-9 E330D Split Piston Assembly

Basic Information
Place of Origin: China
Brand Name: 1 PCS
Model Number: C9 C-9
Minimum Order Quantity: 1 PCS
Price: USA$ 30~45
Packaging Details: Neutral/Original
Delivery Time: 5-15work days
Payment Terms: T/T,Western Union
Supply Ability: 1000PCS,15 work days
Get Best Price
Chat Now
Detail Information
Brand: CAT Place Of Origin: China
Quality: High Quality Part Number: 324-7380 3247380
Engine Model: C9 C-9 E330D E330B E336D Shipping: Sea Air Express
Warranty: Discuss Packing: Neutral/Original
Highlight:

3247380 Piston Skirt

,

CAT C9 E330D Split Piston

,

Split Piston Assembly 324-7380


Product Description

For 324-7380 3247380 piston skirt CAT C9 C-9 E330D split piston assembly



Specification


Part Name
Piston skirt
Part Number
324-7380 3247380
Engine Model
C9 C-9 E330D E330B E336D
Brand
CAT
Place of Origin
China
Warranty
Discuss
Delivery time
7~15 days
Shipping
Sea Air Express
Quality
High Quality
payment
TT,Money Gram, Westem Union



Description


The 324-7380/3247380 piston skirt is a core accessory designed specifically for the split piston assembly of CAT C9, C-9 series engines and E330D excavators. As a key supporting structure of the piston, its main functions are to bear the piston side pressure, guide the piston to reciprocate in the cylinder, and effectively dissipate the heat generated during the piston operation.
We select high-strength aluminum alloy material, add silicon, copper and other reinforcing elements to improve material rigidity and wear resistance. After precision casting and CNC machining, hard anodizing treatment is applied to form a hard oxide film on the product surface, which not only enhances wear resistance but also effectively isolates direct erosion of high-temperature gas. This piston skirt is produced in strict accordance with CAT's original technical standards, with dimensional accuracy controlled within ±0.04mm, which perfectly matches the piston body and cylinder liner. No additional processing or adjustment is required during installation, and the normal working performance of the piston assembly can be restored by direct assembly. Whether in high-intensity operation scenarios such as mining and construction, it can ensure stable piston movement, reduce engine abnormal noise, power reduction and other problems caused by piston skirt wear, and extend the overall service life of the engine.


Advantage

  • Original Factory Fit, Precise Matching: Produced in full accordance with the original drawings of CAT C9/C-9 engine and E330D piston assembly, the dimensional parameters and installation interfaces are completely consistent with the original parts, which can be directly replaced and installed without modification, with a fit rate of 100%.
  • Reinforced Material, Wear-Resistant and Durable: High-strength aluminum alloy base material combined with silicon-copper alloy reinforcement, the material hardness is increased by 40% compared with ordinary aluminum alloy. Combined with hard anodizing surface treatment, the surface hardness can reach more than HV350, which effectively resists the friction loss of the cylinder wall, and the service life is extended by 50% compared with ordinary piston skirts.
  • Excellent Heat Dissipation, Strong Stability: The aluminum alloy material itself has excellent thermal conductivity. Combined with the heat dissipation pattern design on the product surface, it can quickly conduct the heat generated by the piston during operation to the cooling system, avoiding piston skirt deformation caused by local overheating and ensuring stable operation of the engine.
  • Stable Structure, Good Pressure Bearing Capacity: Adopting integral casting process, the internal structure of the product is uniform, without defects such as sand holes and air holes. It can stably bear the side pressure generated by piston movement (maximum bearing pressure of 8MPa), and prevent fractures, deformations and other faults during work.
  • Strict Quality Inspection, Reliable Quality: Each product undergoes 10 quality inspection procedures including dimension inspection, hardness test, air tightness test, non-destructive testing, etc., to ensure that the product meets CAT's original quality standards.


Performance

  • Suitable for high load conditions of CAT C9 engine, the piston skirt is made of high-strength alloy material, which has excellent wear resistance and deformation resistance, ensuring long-term stable operation of the engine.
  • Accurate size design and rigorous processing technology ensure perfect fit with the piston body and cylinder liner, reduce operating clearance, lower mechanical losses, and improve power transmission efficiency.
  • The optimized structural design reduces operating resistance, combined with good thermal conductivity, effectively disperses the heat generated by the piston during operation, avoids the risk of failure caused by local overheating, and extends the overall service life of the engine.
