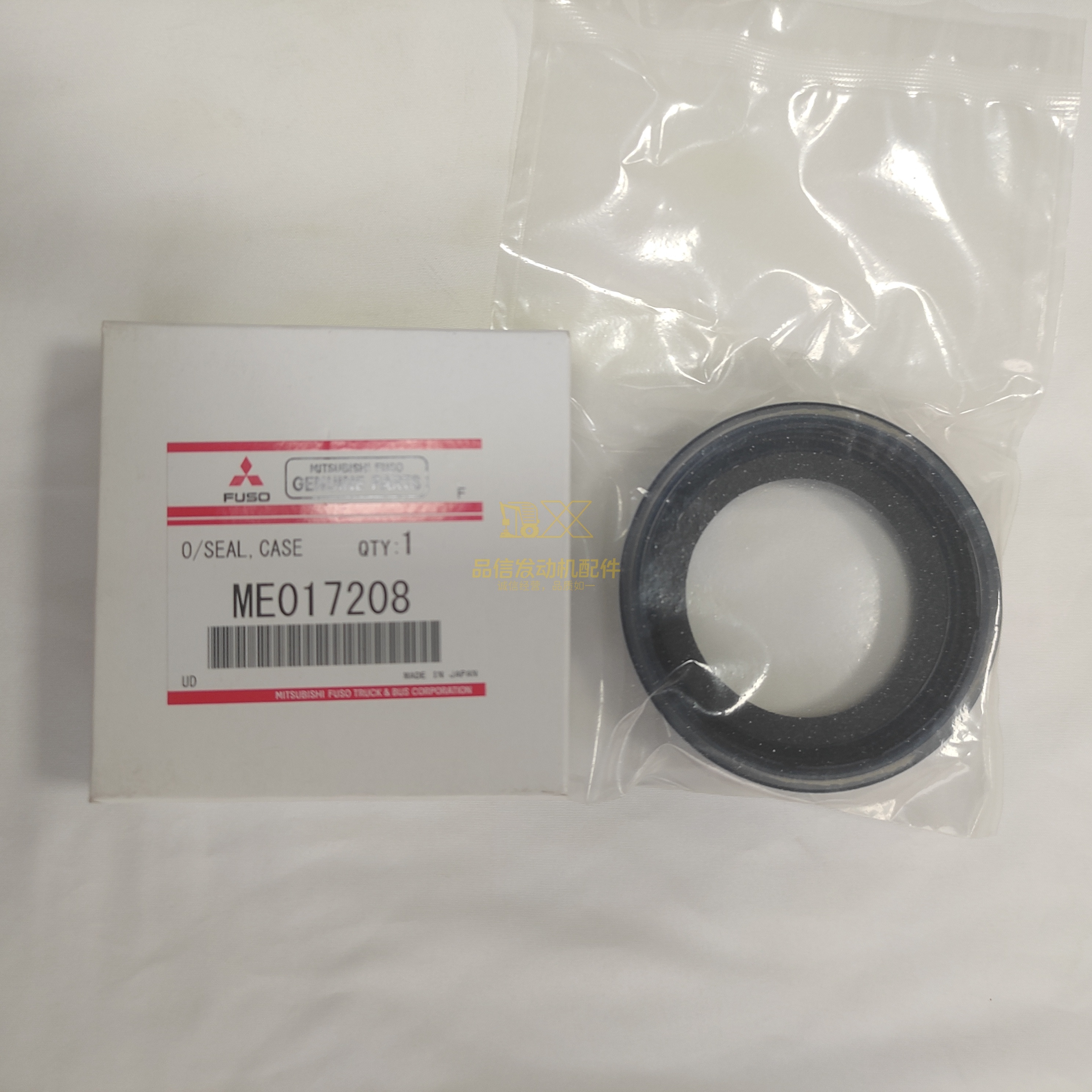

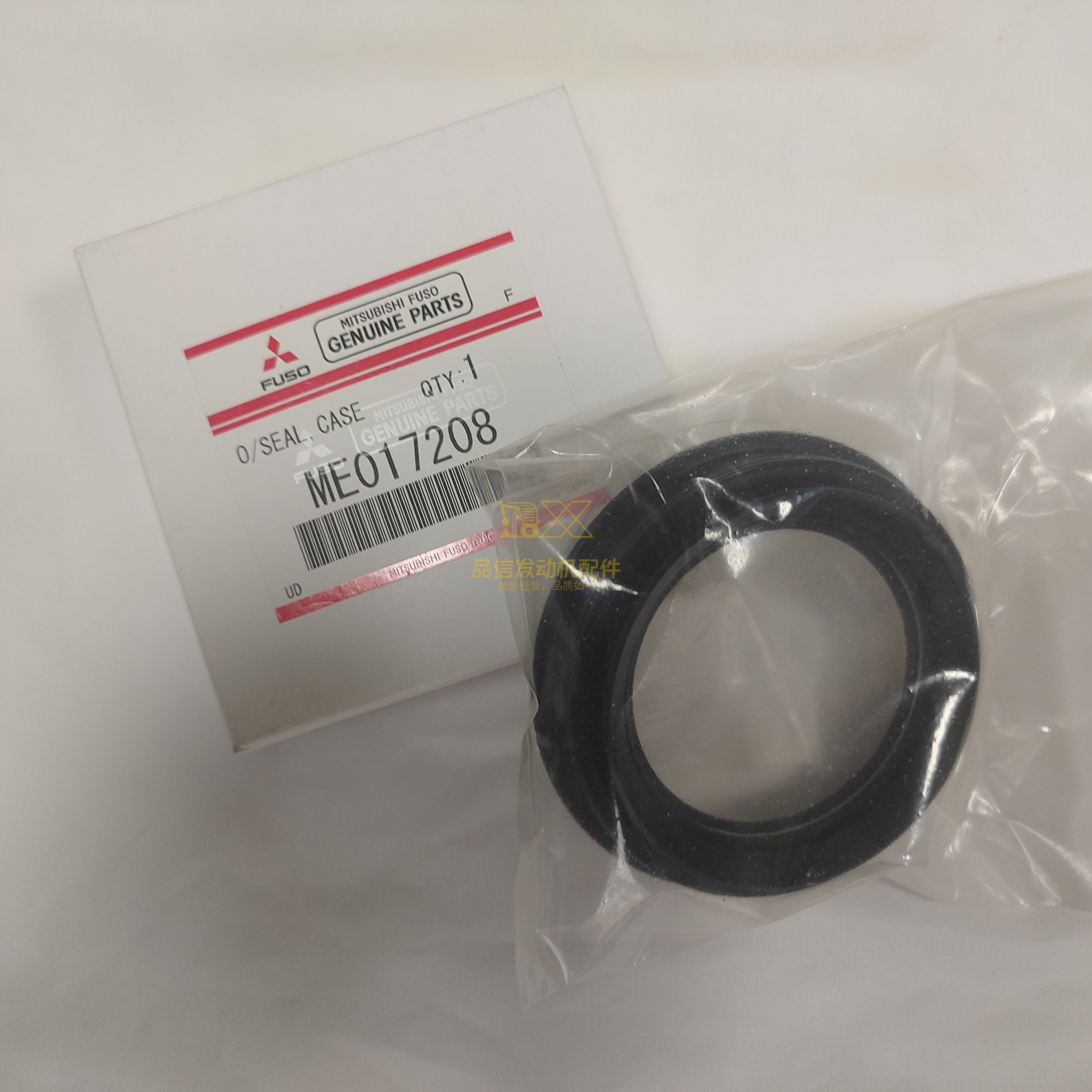

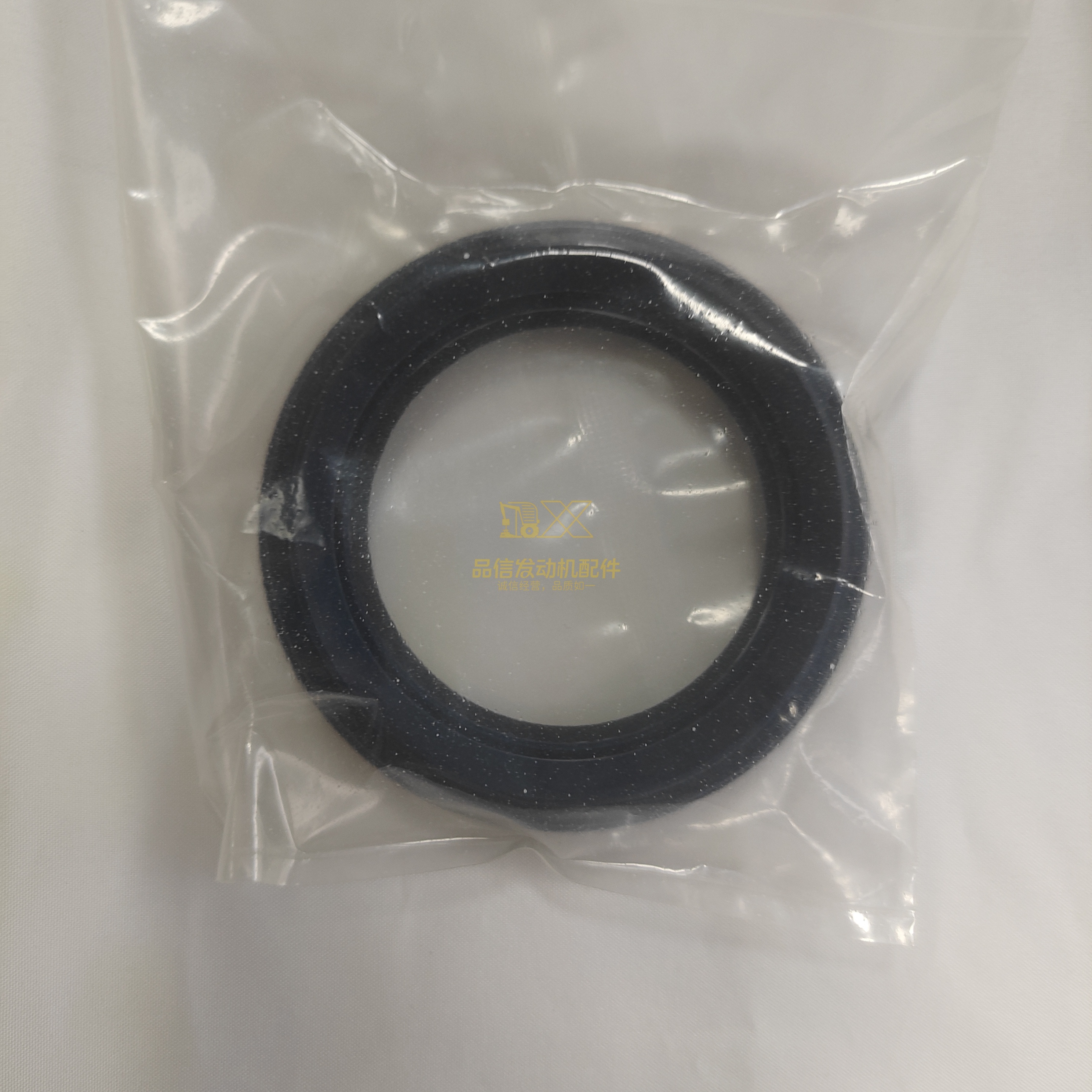

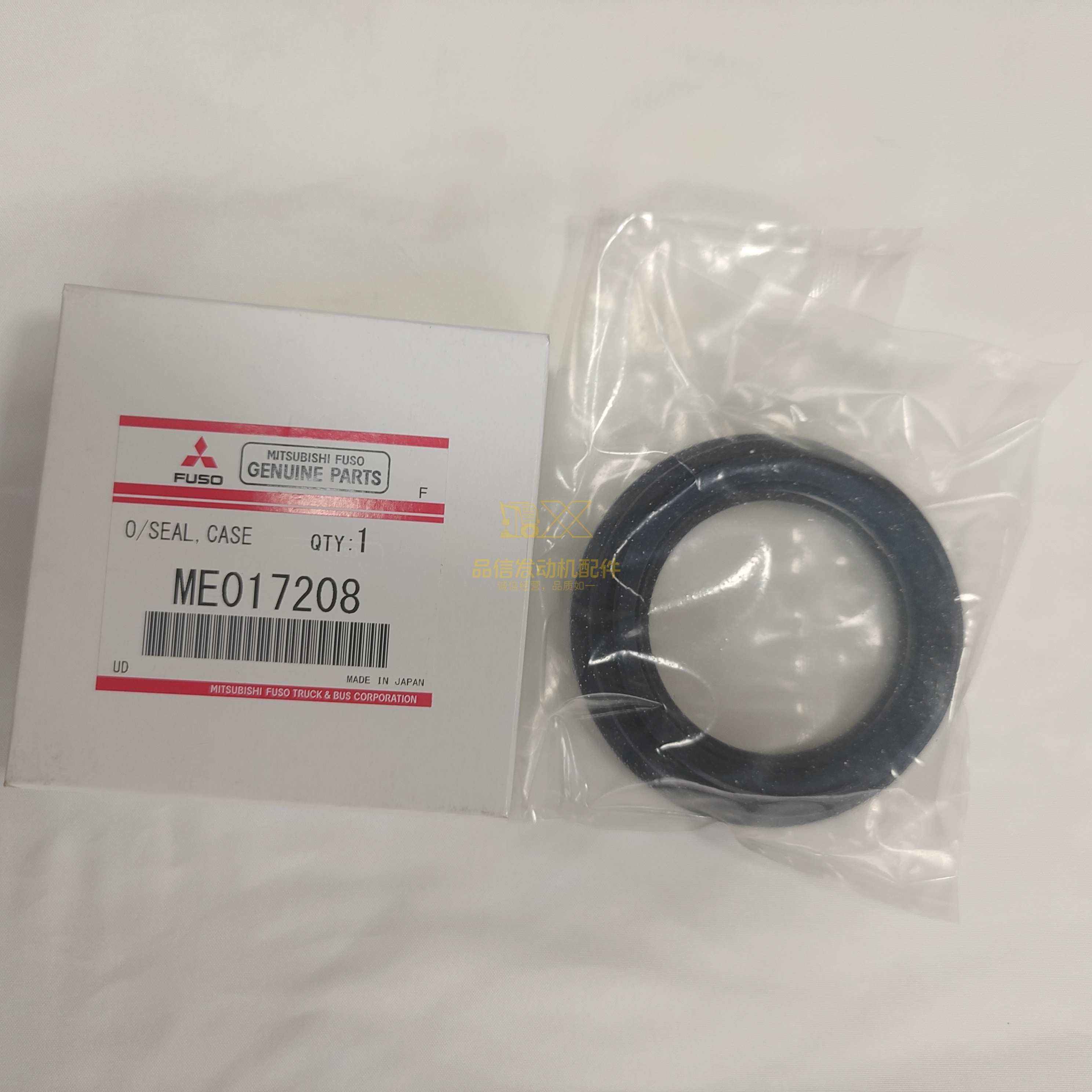

Name: For Mitsubishi ME017208 Front Crankcase Oil Seal 4D34T 4D33T Engine Parts
Brand: Guangzhou Pinxin Engine Co., Ltd.
SKU: 4D34T 4D33T
Availability: InStock

Detail Information

Part Name:	Front Crankcase Oil Seal Timing Gear Oil Seal	Marketing Type:	Ordinary Product
Place Of Origin:	China	Model:	4D34T 4D33T
Warranty:	Discuss	Quality:	High Guarantee
Condition:	100% Brand-new	MOQ:	1 Piece
Packing:	Carton
Highlight:	ME017208 Front Crankcase Oil Seal , 4D33T Engine Parts

Product Description

For Mitsubishi ME017208 front crankcase oil seal 4D34T 4D33T engine parts

Specification

Part Name	front crankcase oil seal timing gear oil seal
Marketing Type	Ordinary Product
Place of Origin	China
Brand	Mitsubishi
Model	4D34T 4D33T
Warranty	Discuss
Quality	High Guarantee
Condition	100% Brand-new
MOQ	1 Piece
Packing	Carton

Description

The ME017208 front crankcase oil seal is a core engine sealing component conforming to Mitsubishi's original specifications, tailor-made for the 4D34T and 4D33T series diesel engines. It is widely applicable to various Mitsubishi Fuso models, construction machinery and other equipment. As a key sealing node between the engine crankshaft and the front crankcase, this oil seal mainly functions to block the leakage path of lubricating oil in the crankcase, while preventing external impurities such as dust, sediment and moisture from invading the engine interior, thus creating a stable and clean working environment for core moving parts like crankshafts and bearings. Manufactured in strict accordance with Mitsubishi's original drawings and technical standards, the product adopts a classic structure of "metal skeleton + elastic sealing lip". The sealing lip has undergone special contour optimization, fitting closely with the rotating surface of the crankshaft, and can adapt to the high-speed operation scenario of the engine during work, ensuring the stability and durability of the sealing performance. It is a preferred original-grade accessory for maintenance, service and overhaul of the engine sealing system.

Advantage

Strong Original Compatibility:Accurately matches the crankshaft size and installation position of 4D34T and 4D33T engines, no need to modify the installation structure, directly replaces old oil seals, reduces maintenance difficulty and time cost, and avoids sealing failure caused by size deviation.
High-Quality Material for Weather Resistance and Durability:The sealing lip is made of imported oil-resistant nitrile rubber (NBR), which has excellent resistance to lubricating oil erosion, high temperature and aging. It can withstand the temperature fluctuation of -30℃ to 120℃ when the engine is working. The metal skeleton is made of high-strength cold-rolled steel plate, which has strong compression and deformation resistance, ensuring the oil seal maintains structural stability in a long-term vibration environment.
Dual Sealing Protection:The lip is built with a spiral oil return pattern design. When the crankshaft rotates, it can scrape a small amount of seepage lubricating oil back to the crankcase in reverse. Cooperating with the outer dust-proof lip, it forms a dual protection system of "leakage prevention + dust prevention", effectively extending the engine oil change cycle and the service life of internal components.
Strict Quality Inspection to Ensure Reliability:Each batch of products undergoes multiple quality inspection processes such as dimensional accuracy inspection, sealing performance test (high-pressure air tightness test), high and low temperature cycle aging test, etc. Unqualified products are directly rejected to ensure that the delivered products meet Mitsubishi's original quality standards and are suitable for high-intensity working scenarios such as commercial vehicles and construction machinery.

Performance

Product Model:ME017208
Applicable Engine:Mitsubishi 4D34T, 4D33T series diesel engines
Structure Size:Inner Diameter: 65mm; Outer Diameter: 90mm; Thickness: 12mm (±0.1mm)
Operating Temperature Range:-30℃ to 120℃ (short-term peak can withstand 140℃)
Sealing Pressure:0-0.3MPa (suitable for normal working pressure of engine crankcase)
Applicable Medium:Diesel engine oil (conventional models such as SAE 5W-30/10W-40)
Rated Rotating Speed:≤3000r/min (suitable for maximum working speed of 4D34T/4D33T engines)
Service Life:≥8000 hours (or 150,000 km) under normal working conditions
Material Composition:Sealing Lip: Oil-resistant Nitrile Rubber (NBR); Skeleton: Cold-rolled Steel Plate; Auxiliary Sealing: Polytetrafluoroethylene (PTFE)

FAQ

Q1: When will my goods be shipped?
A: Your goods will be dispatched within 24 hours after payment confirmation.

Q2: What is the lead time?
A: We maintain sufficient stock for immediate fulfillment.

Q3: What shipping methods do you offer?
A: We ship via sea, air, or express (DHL, FedEx, TNT, UPS, EMS).

Q4: What is the delivery time?
A: Stock items take 2 to 5 days; pre-order items take 7 to 15 days. Contact us for specifics.

Q5: How can I track my shipment?
A: We will provide you with the tracking number as soon as your order is shipped.

Packing&Shipping

For Mitsubishi ME017208 Front Crankcase Oil Seal 4D34T 4D33T Engine Parts 0

Tag:

Place of Origin:	China
Brand Name:	Mitsubishi
Model Number:	4D34T 4D33T

Minimum Order Quantity:	1pcs
Price:	USA$
Packaging Details:	Original/Neutral/Customized
Delivery Time:	1-15 work days
Payment Terms:	T/T,Western Union
Supply Ability:	1000pcs,1-15 work days
