For CAT 3116 Overhaul Kit full vehicle gaskets seals cylinder head gasket
Specification
|
Part Name
|
cylinder head gasket set
|
|
Marketing Type
|
Ordinary Product
|
|
Place of Origin
|
China
|
|
Model
|
3116
|
|
Warranty
|
Discuss
|
|
Quality
|
High Guarantee
|
|
Condition
|
100% Brand-new
|
|
MOQ
|
1 Piece
|
|
Packing
|
Carton
|
Description
This product is a full-specification overhaul kit custom-built for CAT 3116 series engines. It mainly includes full-vehicle seals and highly adaptable cylinder head gaskets, and also integrates key sealing components such as valve oil seals, front and rear crankshaft oil seals, oil pan gaskets, intake manifold gaskets, and exhaust manifold gaskets, forming a complete engine seal repair solution. CAT 3116 engines are widely used in construction machinery, heavy-duty trucks, generator sets and other fields. Long-term high-load operation can easily lead to aging, hardening and leakage of seals, and cylinder head gaskets may be damaged and invalid due to high temperature and pressure. This overhaul kit strictly complies with CAT's original technical standards, adopting the same material formula and structural design as the original factory. The cylinder head gasket is made of multi-layer composite steel sheet and high-temperature resistant rubber composite material, and the full-vehicle seals are made of oil-resistant and anti-aging nitrile rubber (NBR) and fluororubber (FKM) materials. It can accurately match the size of each sealing part of the engine, comprehensively repair the engine's "leakage" problem, restore the engine's sealing performance and work efficiency, and provide reliable component support for engine overhaul.
Advantage
OEM-Level Precise Adaptability:Mold development is fully based on the original factory drawings of CAT 3116 engines. The dimensional tolerance of all seals and cylinder head gaskets is controlled within ±0.02mm. The bolt holes and sealing lip curvature perfectly fit the engine block, which can be directly installed without secondary processing, completely solving the problems of "uninstallable and poor sealing" of aftermarket kits.
High-End Material for Long-Lasting Durability:The cylinder head gasket adopts a "multi-layer steel sheet + graphite coating" structure, which can resist high temperature up to 450℃ and pressure ≥10MPa, effectively withstanding the high temperature and high pressure impact in the engine cylinder and preventing cylinder blowing and leakage. The full-vehicle seals are made of materials tailored to the working conditions of different parts - fluororubber resistant to fuel corrosion is used for fuel system seals, and nitrile rubber resistant to engine oil is used for lubrication system seals. The service life is extended by more than 50% compared with ordinary kits.
Comprehensive Sealing Without Dead Ends:The kit covers all sealing parts of the engine, from the cylinder head to the oil pan, and from the intake system to the exhaust system, including small parts that are easily overlooked such as water pump gaskets and camshaft oil seals. It solves multiple problems such as engine oil leakage, coolant leakage and exhaust gas leakage at one time, avoiding repeated rework after overhaul.
Improve Engine Performance:High-quality cylinder head gaskets ensure the tightness between the cylinder block and cylinder head, maintain normal compression ratio and reduce power loss; reliable sealing of intake manifold gaskets avoids mixture leakage and improves combustion efficiency; good sealing of the exhaust system reduces back pressure, helping the engine output more stable power and improving fuel economy by 8%-12%.
Worry-Free, Labor-Saving and Cost-Effective:The kit adopts standardized packaging, and each component is classified and stored according to the installation position, with a simple installation guide attached. There is no need to purchase various seals separately, avoiding the risk of model mismatch, greatly saving procurement time and labor costs, and the comprehensive cost performance is far higher than buying scattered parts separately.
Performance
Applicable Engine Model:CAT 3116 series diesel engines, covering different power versions of this series

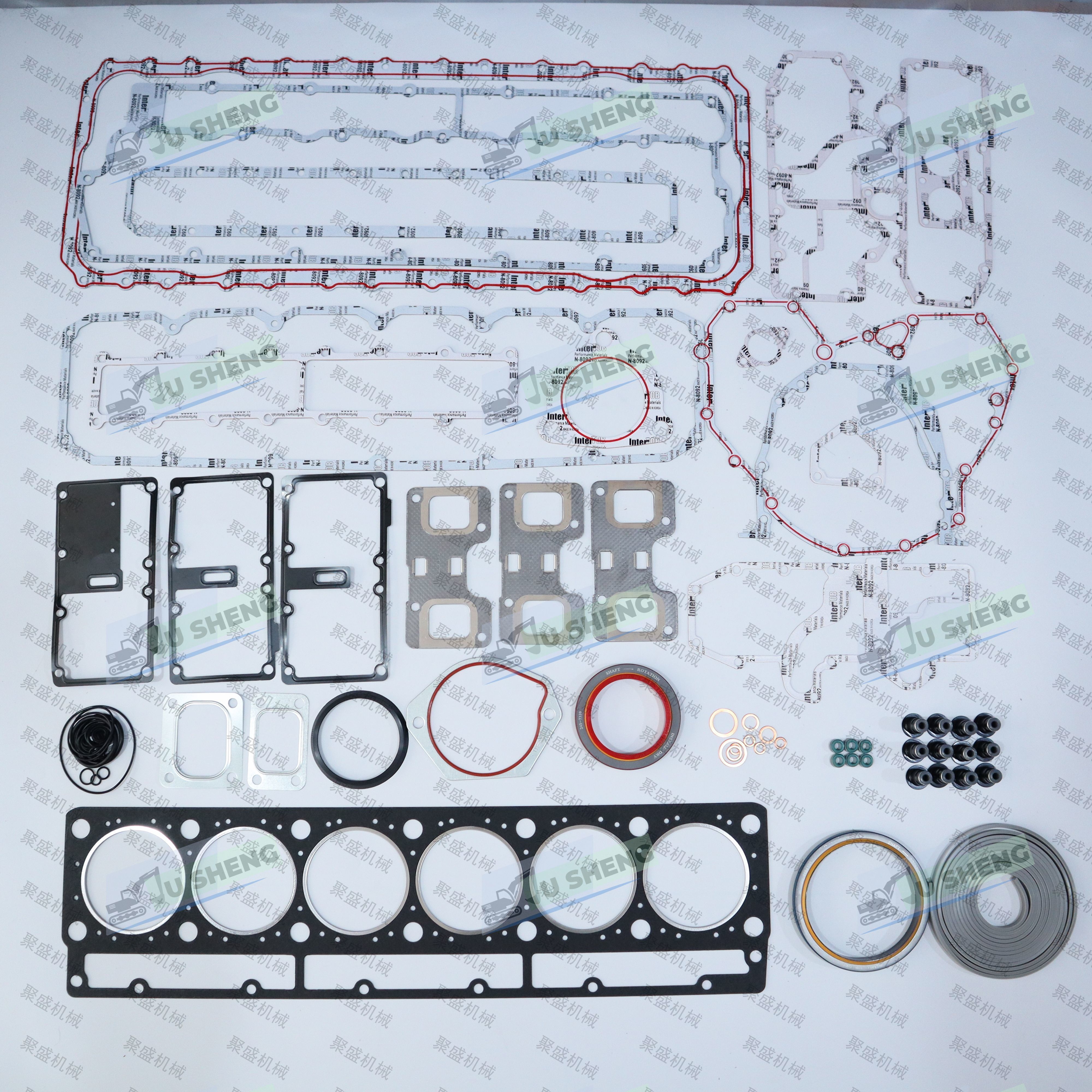

Core Components:1 cylinder head gasket, 12 valve oil seals (6 intake and 6 exhaust), 1 front crankshaft oil seal, 1 rear crankshaft oil seal, 1 set of oil pan gaskets, 1 set of intake manifold gaskets, 1 set of exhaust manifold gaskets, 1 water pump gasket, and several other auxiliary seals
Cylinder Head Gasket Material:3-layer cold-rolled steel plate + graphite coating + high-temperature resistant rubber edge
Cylinder Head Gasket Temperature Resistance:Continuous working temperature resistance ≤450℃, instantaneous temperature resistance ≤500℃
Cylinder Head Gasket Pressure Resistance:≥10MPa, meeting the maximum burst pressure requirement of the engine
Rubber Seal Material:Nitrile Rubber (NBR), Fluororubber (FKM), matched to different systems as needed
Oil Resistance of Rubber Seals:Soaked in 120℃ engine oil for 72 hours, volume change rate ≤5%
Chemical Resistance of Rubber Seals:Resistant to corrosion from common construction machinery oils such as coolant, fuel oil and transmission oil
Working Temperature Range:-30℃~180℃, adapting to different regions and working conditions
Sealing Surface Hardness:Shore hardness of rubber seals is 65±5HA, and the hardness of cylinder head gasket steel sheet is HV180±20
Installation Torque Adaptability:Compatible with the original cylinder head bolt torque standard (220±10N·m), no deformation after installation
