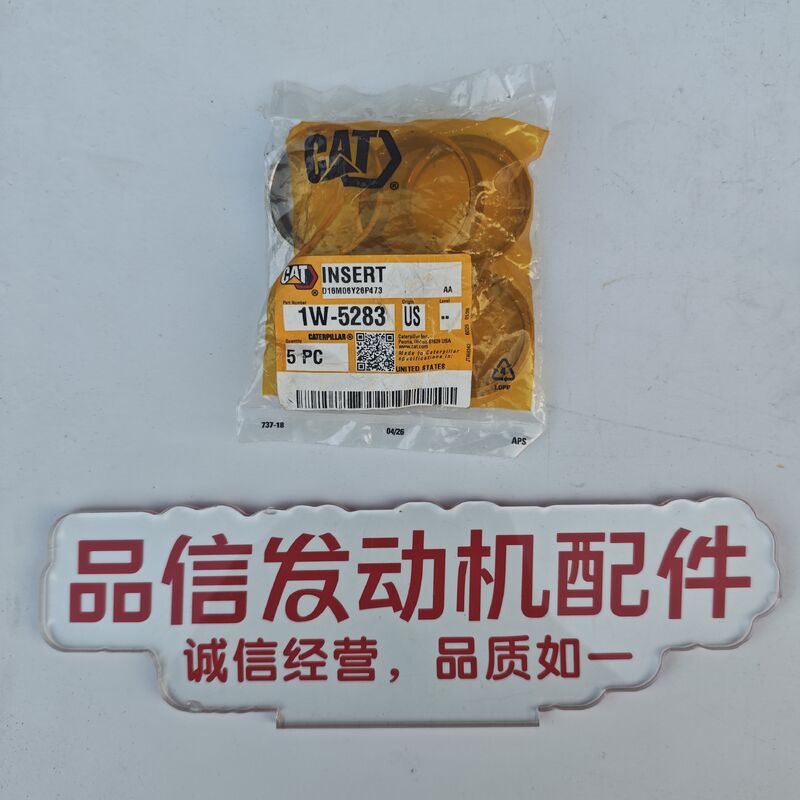

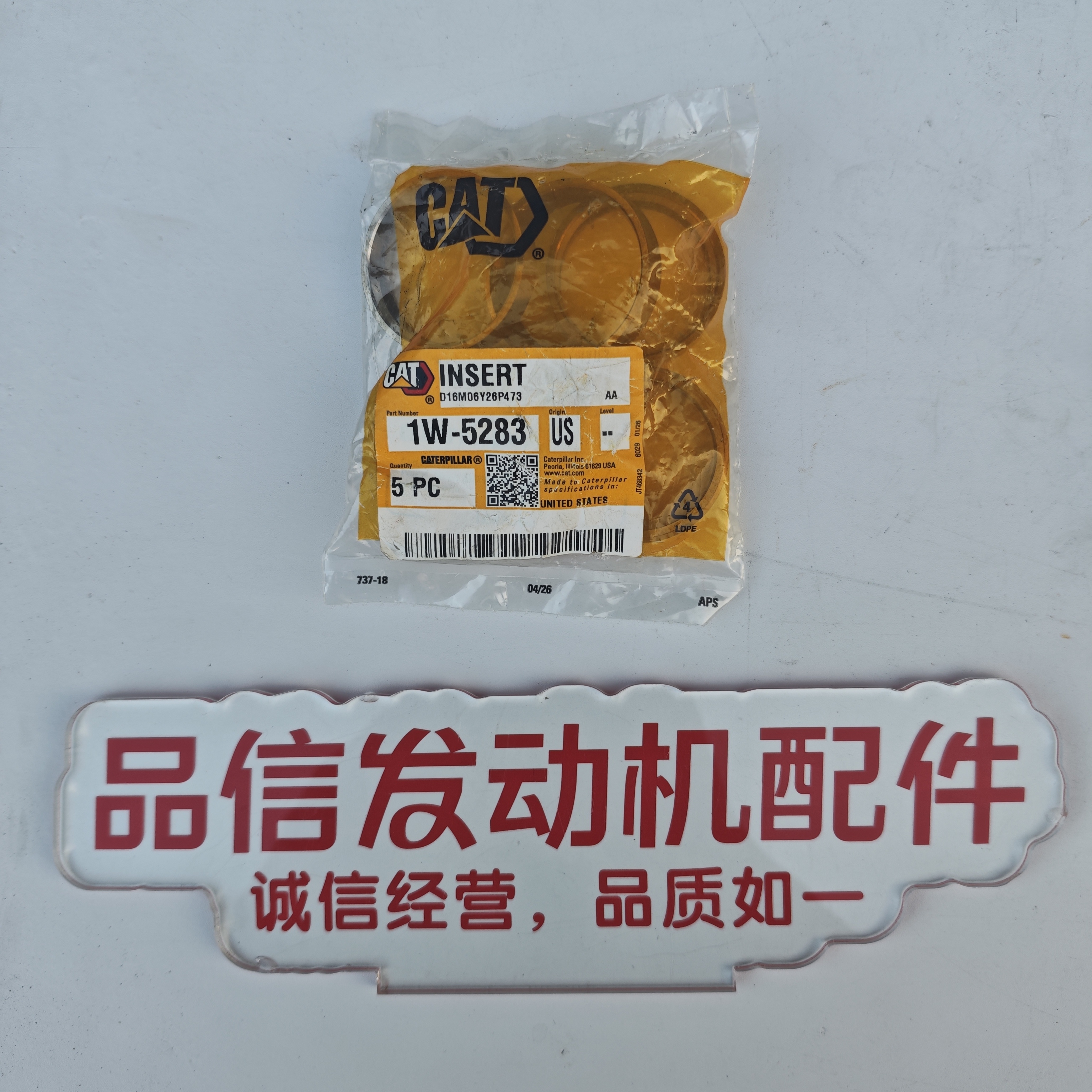

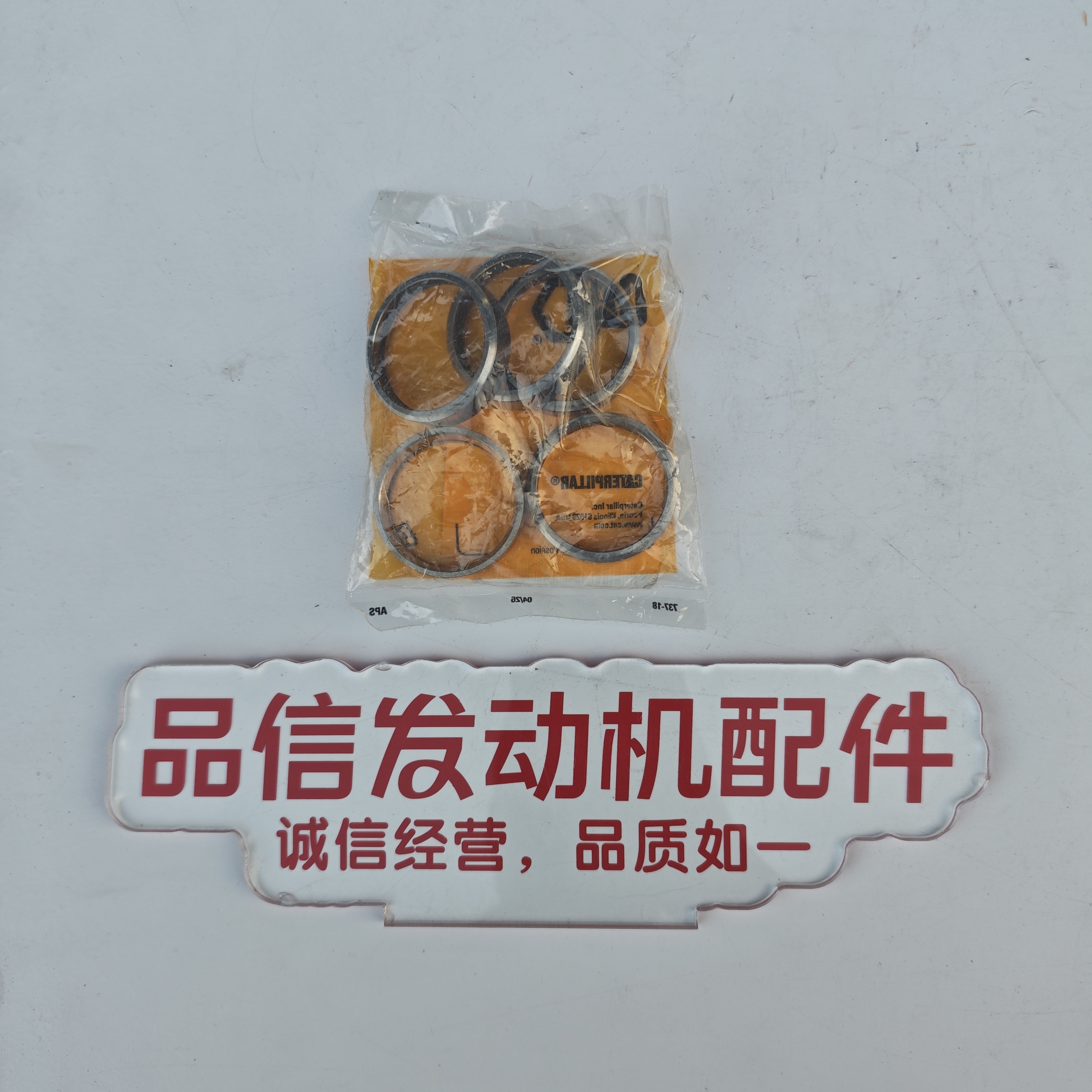

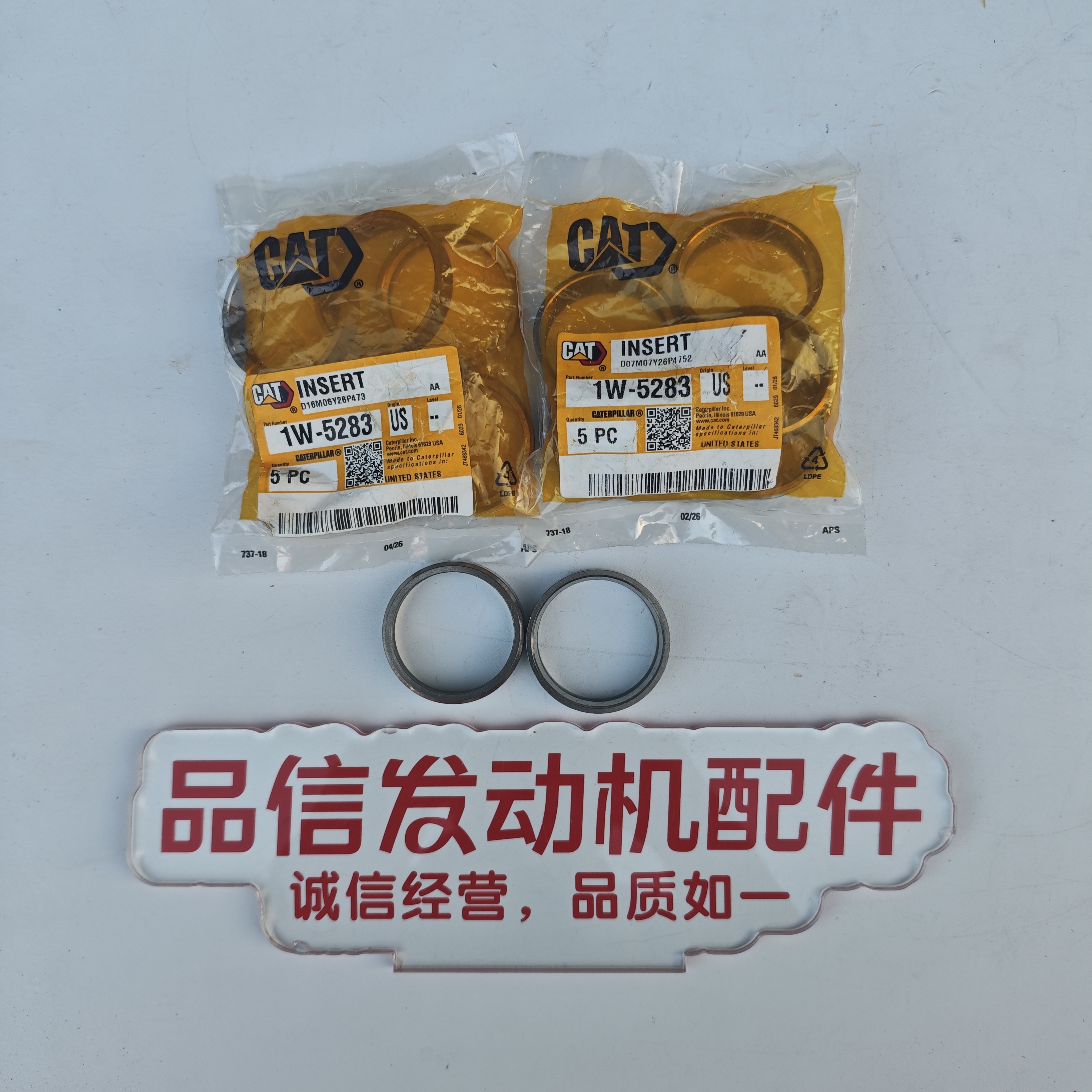

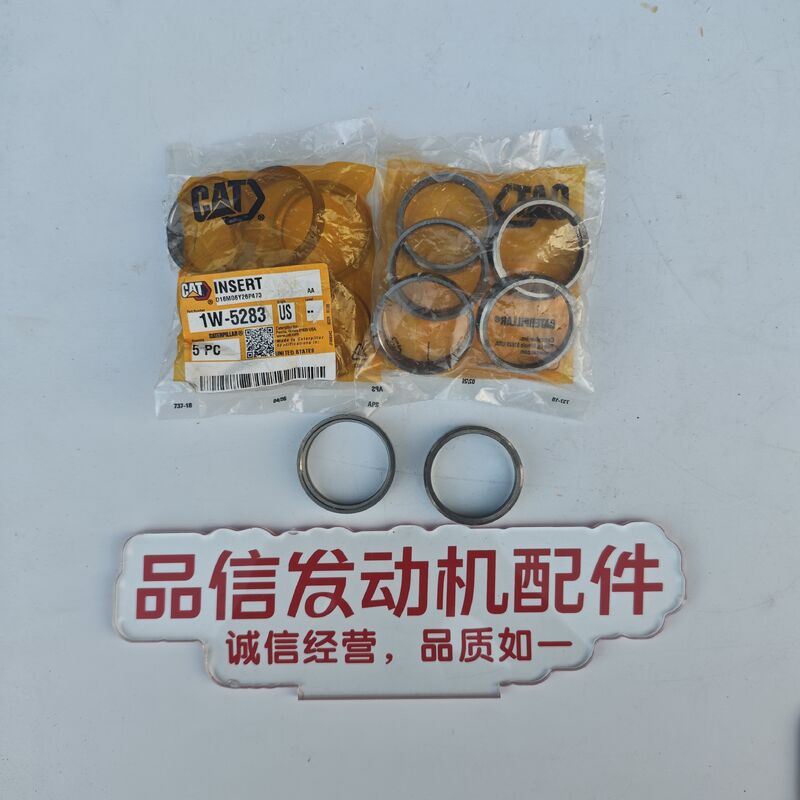

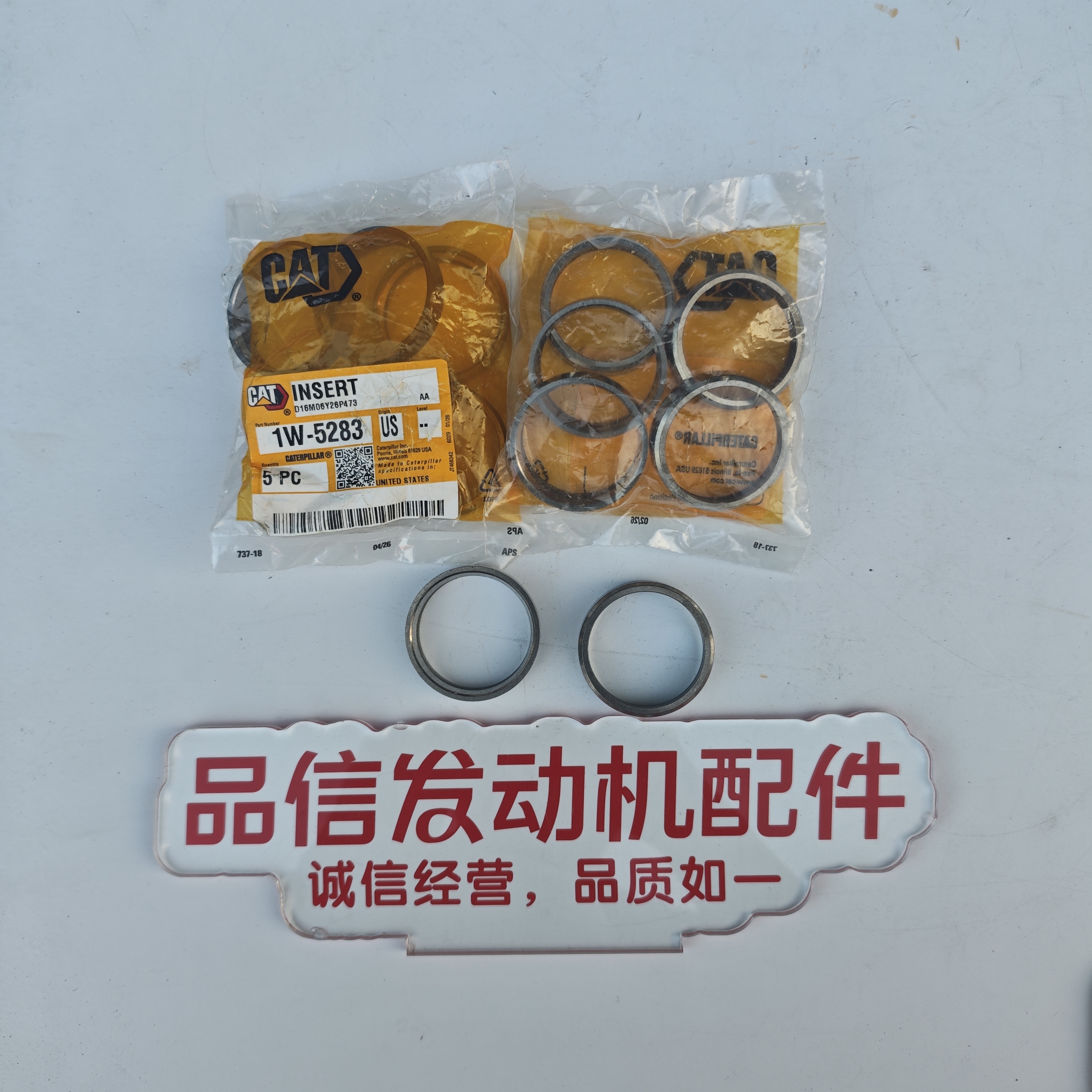

1W-5283 1W5283 Valve Seat Insert 3406 3408 3412 CAT Engine Parts Excavator Diesel

The 1W-5283 valve seat insert is the wear-critical seat ring that intake and exhaust valves close against in CAT 3406, 3408 and 3412 diesel engines. It is the component that carries compression sealing, transfers combustion heat from the valve head into the cylinder head casting, and protects the head from valve recession under sustained load. Supplied as a stocked item within our CAT Engine Parts range, every insert is machined to OE seat geometry so workshops can complete a cylinder head rebuild without re-cutting the seat counterbore in most applications.

This valve seat insert is used on excavator engine parts assemblies, wheel loaders, haul trucks, marine propulsion sets and generator sets powered by the 3406, 3408 and 3412 families. Because the same engine family is serviced in very different duty cycles, from quarry shot-rock work to continuous prime-power generation, the insert is produced from a high-chromium heat-resistant alloy and finish-ground on CNC seat grinders to hold its face angle and concentricity through the full service interval.

• OE-matched seat geometry: the 45 degree contact face and controlled outside diameter keep valve margin position and installed stem height inside CAT service limits after pressing.
• Heat-resistant alloy body: chromium and cobalt carbides retain hardness on the exhaust side, limiting seat recession, face pitting and valve guttering on high-hour 3406 and 3412 engines.
• Precision ground contact face: concentricity is held to a tight tolerance so the valve seals on the full face width, restoring compression and cutting blow-by after a head rebuild.
• Stable interference fit: the outside diameter is ground for a predictable press fit, so the insert seats squarely and stays locked in the counterbore without cracking the head during chilled installation.
• Repeatable batch quality: every lot is dimensionally inspected and hardness checked, so a second order matches the first one for fit and valve stem height.
• Fast rebuild availability: held as a fast-moving CAT Engine Parts item for workshops that cannot afford to keep a 3408 or 3412 head waiting on a single seat ring.

The same 1W-5283 valve seat insert is used across the 3406, 3408 and 3412 cylinder heads, which makes it a practical stock line for a workshop that services mixed fleets of excavator engine parts and power generation equipment. If you are rebuilding several heads at once, order the seat insert together with the matching valve, guide and gasket kit so the whole head is refreshed in one pass.

1. Clean the seat counterbore and measure the bore diameter before removal, so the new insert is checked against the original bore rather than the worn seat face.
2. Chill the insert and heat the head evenly where the service procedure allows, then press the seat in square with a piloted driver.
3. Check that the insert sits fully on the counterbore step; a partial seat will change valve stem height and cause rapid face wear.
4. Grind or lap the contact face only when the head has been resurfaced, then verify seat width and concentricity with the valve guide.
5. Confirm installed valve stem height and valve margin before assembly, and check sealing with a vacuum or solvent test.

Each production lot is checked at three stages: incoming material verification for alloy grade and hardness, in-process inspection of the outside diameter and seat face angle after grinding, and a final 100% dimensional and visual check before packing. Inserts are then anti-rust coated and packed in neutral cartons with separators, so the ground faces arrive without nicks or corrosion. Where a customer needs traceability, we can quote with batch records and third-party inspection for larger rebuild programmes.

We supply CAT Engine Parts to distributors, engine rebuild workshops, fleet maintenance teams and equipment dealers. Our export experience covers buyers in Australia, Canada, Chile, Zambia, Congo, Nigeria, Ghana, Tanzania, Indonesia, Thailand, Malaysia, Zimbabwe, Brazil, South Africa, Saudi Arabia, Mozambique, Peru, Argentina, Vietnam and Kenya, and we routinely handle mixed orders where a single container or air shipment carries several part numbers for one rebuild schedule.

• Part number matching: send the engine model, serial number or the original part reference and we confirm the correct seat insert before you order.
• Mixed orders: combine valve seat inserts with valves, guides, gasket kits and other CAT Engine Parts in one order.
• Sample and trial orders: a small quantity can be supplied for a first rebuild so your workshop can verify fit and finish.
• Private packing: neutral cartons as standard, or your own label artwork where authorisation is provided.

• Intake and exhaust valves for 3406, 3408 and 3412 cylinder heads
• Valve guides, springs, retainers and keepers
• Cylinder head gasket kits and overhaul gasket sets
• Piston, piston ring and cylinder liner kits
• Cylinder head assemblies and complete engine assemblies

Q: How do I confirm that 1W5283 fits my engine?
A: Send us the engine model, serial number and, if possible, the part reference stamped on the old insert. We will cross-check the application against the 3406, 3408 and 3412 listings before quoting.

Q: What is the minimum order quantity?
A: 12 pieces per part number, and smaller trial quantities can be arranged for a first rebuild.

Q: Which payment terms do you accept?
A: T/T and Western Union as standard, with L/C available for larger confirmed orders.

Q: Can you supply other CAT Engine Parts together with the seat insert?
A: Yes. Valves, guides, gasket kits, piston and liner kits and complete head assemblies can be combined in the same order.

Q: How are the inserts packed?
A: Neutral cartons with anti-rust coating and separators between inserts, or customer-labelled packing where authorisation is provided.

Tell us the engine model, the quantity you need and the rebuild schedule you are working to. Our team will confirm the valve seat insert application and reply with a quotation for the 1W-5283 and any other CAT Engine Parts on your list.
